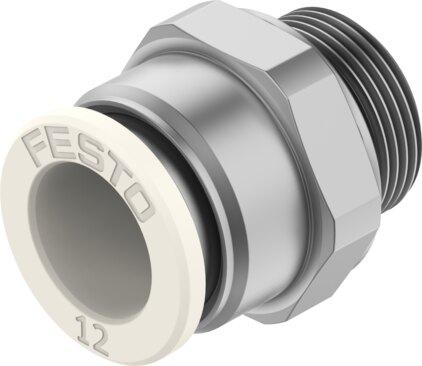

Reference imageConfirm configuration by manufacturer part number.
Festo
8203301
Push-in fitting NPQO-D-G38-Q12-P5
The Festo 8203301 is a straight industrial component featuring a 10.3 mm nominal width, 22 mm tubing insertion depth, and push-pull structural design with an O-ring seal on the screwed plug. Operating across a pressure range of -0.09 MPa to 2 MPa and a temperature range of 0 °C to 120 °C, it supports compressed air, inert gases, carbon dioxide, nitrogen, and oxygen media with a maximum tightening torque of 10 Nm. This pack size of 5 components provides moderate corrosion resistance (CRC 2) and VDMA24364 Zone III LABS conformity, meeting ISO 18562 biocompatibility and ASTM G 93 and ISO 15001 oxygen suitability standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203301
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203301.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 10.3 mm
- Tubing insertion depth
- 22 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.09 MPa...2 MPa | -0.9 bar...20 bar | -13.05 psi...290 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...120 °C
- Ambient temperature
- 0 °C...120 °C
- Biocompatibility according to standard
- ISO 18562
- Oxygen suitability according to standard
- ASTM G 93 | ISO 15001
- Impurity level, hydrocarbons maximum
- 550 MGM
- Max. tightening torque
- 10 Nm
- Nominal tightening torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 28.46 g
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Ambient temperature Fahrenheit
- 32 °F...248 °F
- Releasing ring color
- White
- Material of screwed plug
- high-alloy stainless steel
