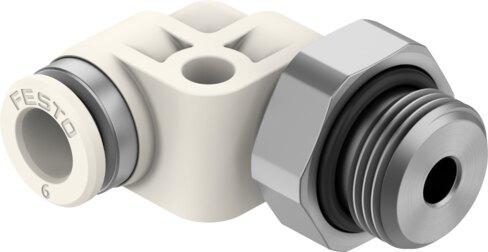

Reference imageConfirm configuration by manufacturer part number.
Festo
8203307
Push-in L-fitting NPQO-L-G14-Q6-P10
The Festo part number 8203307 is an L-shaped industrial component featuring a 4 mm nominal width, a 15.3 mm tubing insertion depth, and an O-ring seal on the screwed plug with integrated mounting holes. Designed with a push-pull structural design for any mounting position, this unit operates with compressed air, inert gases, carbon dioxide, air, oxygen, or nitrogen across an ambient temperature range of 0 °C to 60 °C and a medium temperature of 0 °C to 120 °C. It supports an operating pressure of -0.09 MPa to 0.3 MPa across the entire temperature range and -0.09 MPa to 1.6 MPa under temperature-dependent conditions, alongside a maximum tightening torque of 9 Nm and a moderate corrosion stress rating (CRC 2). Submit the exact part number, quantity, and application requirements to receive a quote for this pack size of 10.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203307
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203307.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4 mm
- Tubing insertion depth
- 15.3 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Variants
- With mounting holes
- Operating pressure for entire temperature range
- -0.09 MPa...0.3 MPa | -0.9 bar...3 bar | -13.05 psi...43.5 psi
- Temperature-dependent operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar | -13.05 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...120 °C
- Ambient temperature
- 0 °C...60 °C
- Biocompatibility according to standard
- ISO 18562
- Oxygen suitability according to standard
- ASTM G 93 | ISO 15001
- Impurity level, hydrocarbons maximum
- 550 MGM
- Max. tightening torque
- 9 Nm
- Nominal tightening torque
- 8 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 25.67 g
- Pneumatic connection 1
- External thread G1/4
