Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

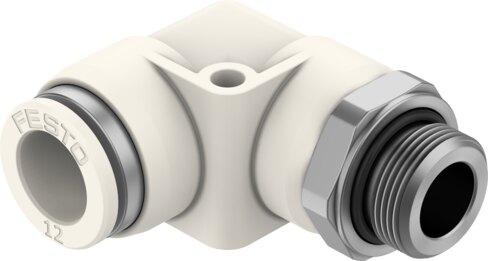

Reference imageConfirm configuration by manufacturer part number.
Festo
8203311
Push-in L-fitting NPQO-L-G38-Q12-P5
The Festo 8203311 is an L-shaped industrial component featuring a 10 mm nominal width, a 22 mm tubing insertion depth, and an O-ring seal on the screwed plug with integrated mounting holes. Designed with a push-pull structural principle and a maximum tightening torque of 10 Nm, this unit operates across an ambient temperature range of 0 °C to 60 °C and a medium temperature range of 0 °C to 120 °C. It supports a temperature-dependent operating pressure of -0.09 MPa to 1.2 MPa and handles compressed air, inert gases, carbon dioxide, air, oxygen, and nitrogen with a moderate corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203311
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203311.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 10 mm
- Tubing insertion depth
- 22 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Variants
- With mounting holes
- Operating pressure for entire temperature range
- -0.09 MPa...0.3 MPa | -0.9 bar...3 bar | -13.05 psi...43.5 psi
- Temperature-dependent operating pressure
- -0.09 MPa...1.2 MPa | -0.9 bar...12 bar | -13.05 psi...174 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...120 °C
- Ambient temperature
- 0 °C...60 °C
- Biocompatibility according to standard
- ISO 18562
- Oxygen suitability according to standard
- ASTM G 93 | ISO 15001
- Impurity level, hydrocarbons maximum
- 550 MGM
- Max. tightening torque
- 10 Nm
- Nominal tightening torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 60.3 g
- Pneumatic connection 1
- External thread G3/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8203311. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
