Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

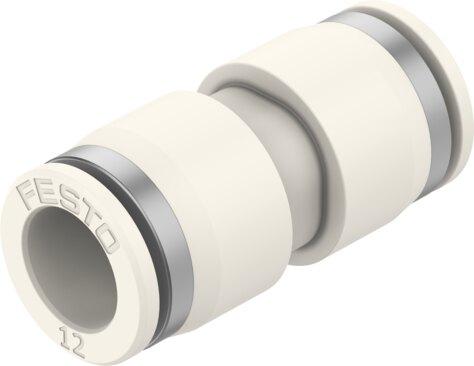

Reference imageConfirm configuration by manufacturer part number.
Festo
8203319
Push-in connector NPQO-D-Q12-E-P5
The Festo part number 8203319 is a straight-design industrial component featuring an 11 mm nominal width, a 22.25 mm tubing insertion depth, and a push-pull structural design for 12 mm outside diameter pneumatic tubing at both connections. Operating across a temperature range of 0 °C to 120 °C, this unit supports compressed air per ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, and nitrogen with a product weight of 22.62 g and a pack size of 5. This component is built with a moderate corrosion resistance class (CRC 2) and VDMA24364 Zone III LABS conformity, accommodating operating pressures from -0.09 MPa to 1.2 MPa depending on temperature. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203319
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203319.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 11 mm
- Tubing insertion depth
- 22.25 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.09 MPa...0.3 MPa | -0.9 bar...3 bar | -13.05 psi...43.5 psi
- Temperature-dependent operating pressure
- -0.09 MPa...1.2 MPa | -0.9 bar...12 bar | -13.05 psi...174 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...120 °C
- Ambient temperature
- 0 °C...60 °C
- Biocompatibility according to standard
- ISO 18562
- Oxygen suitability according to standard
- ASTM G 93 | ISO 15001
- Impurity level, hydrocarbons maximum
- 550 MGM
- Product weight
- 22.62 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 12 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- White
- Note on materials
- RoHS compliant
- Housing material
- PVDF
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8203319. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
