Festo
8203321

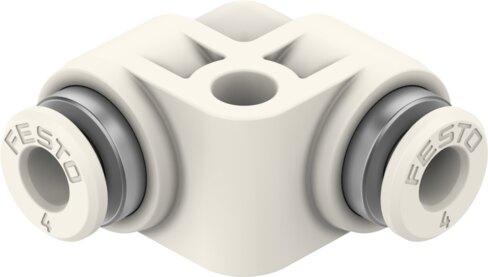

Push-in L-connector NPQO-L-Q4-E-P10
Festo part number 8203321 is an L-shaped industrial component featuring a nominal width of 3 mm, a 14.8 mm tubing insertion depth, and a push-pull structural design with mounting holes for installation in any mounting position. Operating with compressed air, inert gases, carbon dioxide, air, oxygen, or nitrogen, this 7.58 g unit handles temperatures from 0 °C to 120 °C and pressures ranging from -0.09 MPa to 1.6 MPa depending on operating temperature. This pack size of 10 components achieves a corrosion resistance class of 2 and VDMA24364 Zone III LABS conformity, while accommodating 4 mm outside diameter pneumatic tubing. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203321
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203321.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 3 mm
- Tubing insertion depth
- 14.8 mm
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Variants
- With mounting holes
- Operating pressure for entire temperature range
- -0.09 MPa...0.3 MPa | -0.9 bar...3 bar | -13.05 psi...43.5 psi
- Temperature-dependent operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar | -13.05 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...120 °C
- Ambient temperature
- 0 °C...60 °C
- Biocompatibility according to standard
- ISO 18562
- Oxygen suitability according to standard
- ASTM G 93 | ISO 15001
- Impurity level, hydrocarbons maximum
- 550 MGM
- Product weight
- 7.58 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- White
- Note on materials
- RoHS compliant
