Festo
8203328

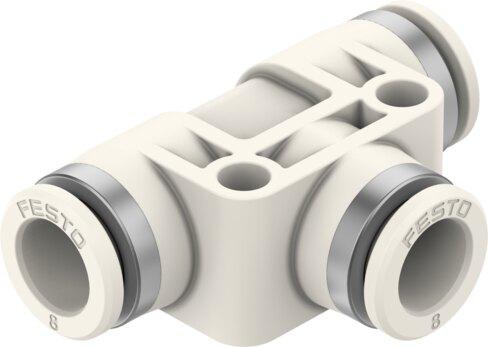

Push-in T-connector NPQO-T-Q8-E-P10
The Festo part number 8203328 is a T-shaped industrial component featuring a nominal width of 7 mm, an 8 mm pneumatic connection 1, and an integrated push-pull structural design with mounting holes. This pack of 10 components weighs 15.98 g each, operates in any mounting position, and supports compressed air, inert gases, carbon dioxide, air, oxygen, and nitrogen within a medium temperature range of 0 °C to 120 °C. It provides an operating pressure of -0.09 MPa to 0.3 MPa across its entire temperature range, scaling up to 1.6 MPa depending on the operating temperature, while meeting ISO 18562 biocompatibility and ASTM G 93 and ISO 15001 oxygen suitability standards with a moderate corrosion resistance class of 2. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203328
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203328.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7 mm
- Tubing insertion depth
- 17.6 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Variants
- With mounting holes
- Operating pressure for entire temperature range
- -0.09 MPa...0.3 MPa | -0.9 bar...3 bar | -13.05 psi...43.5 psi
- Temperature-dependent operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar | -13.05 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...120 °C
- Ambient temperature
- 0 °C...60 °C
- Biocompatibility according to standard
- ISO 18562
- Oxygen suitability according to standard
- ASTM G 93 | ISO 15001
- Impurity level, hydrocarbons maximum
- 550 MGM
- Product weight
- 15.98 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- White
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8203328. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
