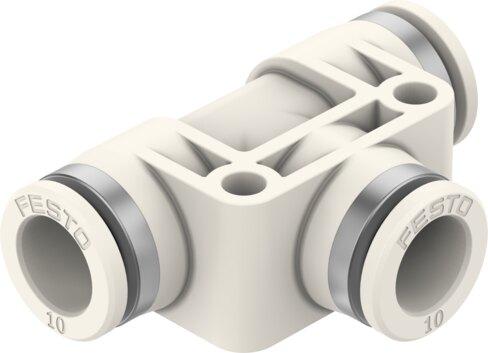

Name: Festo 8203329 Push-in T-connector NPQO-T-Q10-E-P5
Brand: Festo

Push-in T-connector NPQO-T-Q10-E-P5

The Festo part number 8203329 is a T-shaped industrial component featuring a 9 mm nominal width, a 20.1 mm tubing insertion depth, and a pneumatic connection 1 for 10 mm outside diameter pneumatic tubing utilizing a push-pull structural design with integrated mounting holes for any mounting position. Weighing 25.77 g and packaged in a pack size of 5, this unit operates with compressed air per ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, and nitrogen across a medium temperature range of 0 °C to 120 °C and an ambient temperature range of 0 °C to 60 °C. It delivers an operating pressure of -0.09 MPa to 0.3 MPa across the entire temperature range and -0.09 MPa to 1.2 MPa in temperature-dependent conditions, while meeting CRC 2 moderate corrosion stress, VDMA24364 Zone III LABS conformity, ISO 18562 biocompatibility, and ASTM G 93 and ISO 15001 oxygen suitability standards with a maximum hydrocarbon impurity level of 550 MGM. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8203329
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8203329.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 9 mm
Tubing insertion depth: 20.1 mm
Mounting position: Any
Design: T-shape
Pack size: 5
Structural design: Push-pull principle
Variants: With mounting holes
Operating pressure for entire temperature range: -0.09 MPa...0.3 MPa | -0.9 bar...3 bar | -13.05 psi...43.5 psi
Temperature-dependent operating pressure: -0.09 MPa...1.2 MPa | -0.9 bar...12 bar | -13.05 psi...174 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Temperature of medium: 0 °C...120 °C
Ambient temperature: 0 °C...60 °C
Biocompatibility according to standard: ISO 18562
Oxygen suitability according to standard: ASTM G 93 | ISO 15001
Impurity level, hydrocarbons maximum: 550 MGM
Product weight: 25.77 g
Pneumatic connection 1: for pneumatic tubing outside diameter 10 mm
Pneumatic connection 2: for pneumatic tubing outside diameter 10 mm
Ambient temperature Fahrenheit: 32 °F...140 °F
Releasing ring color: White
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8203329. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
