Festo
8203482

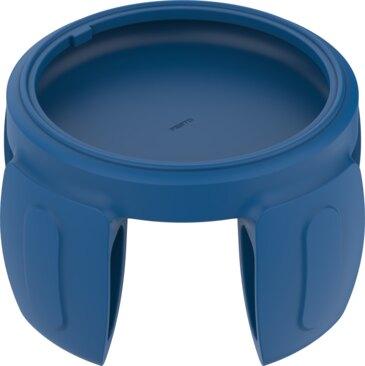

Gripper finger cap HAMA-GA-B33-100-4-S-40-BU
The Festo part number 8203482 is a blue industrial component of size 100 featuring a 4-finger design with metal-detectable VMQ silicone gripper fingers having a Shore hardness of A 40 +5. This form-fit and frictionally engaged gripper operates on compressed air as per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of 0 °C to 60 °C, accommodating a gripping diameter from 80 mm to 110 mm with a working stroke of 30 mm to 125 mm. Weighing 315 g, the RoHS-compliant unit complies with VDMA24364 Zone III LABS conformity and is applicable in the food industry according to supplementary material information. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203482
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203482.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Min. diameter to be gripped
- 80 mm
- Max. diameter to be gripped
- 110 mm
- Working stroke
- 30 mm...125 mm
- Number of Gripper ngers
- 4
- Design
- For gripper
- Structural design
- form-t | frictionally engaged
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 315 g
- Color
- Blue
- Shore hardness
- A 40 +5
- Note on materials
- RoHS compliant
- Gripper nger material
- VMQ (silicone), metal detectable
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8203482. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
