Festo
8203485

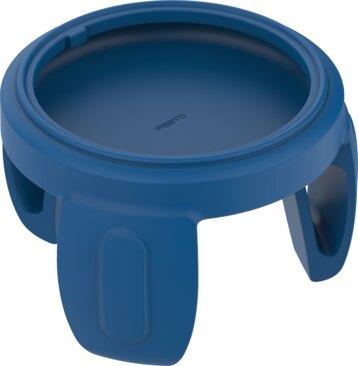

Gripper finger cap HAMA-GA-B33-70-3-S-40-BU
The Festo part number 8203485 is a size 70 industrial component featuring three metal-detectable VMQ silicone gripper fingers with a Shore hardness of A 40 +5 and blue coloration. Engineered with form-fit and frictionally engaged structural design, it accommodates a minimum gripping diameter of 55 mm, a maximum gripping diameter of 80 mm, and a working stroke of 20 mm to 90 mm with a total product weight of 114 g. This RoHS-compliant unit operates using compressed air as per ISO 8573-1:2010 [7:4:4], conforms to VDMA24364 Zone III LABS (PWIS) standards, functions within an ambient temperature range of 0 °C to 60 °C, and is applicable for use in the food industry as detailed in supplementary material information. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203485
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203485.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 70
- Min. diameter to be gripped
- 55 mm
- Max. diameter to be gripped
- 80 mm
- Working stroke
- 20 mm...90 mm
- Number of Gripper ngers
- 3
- Design
- For gripper
- Structural design
- form-t | frictionally engaged
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 114 g
- Color
- Blue
- Shore hardness
- A 40 +5
- Note on materials
- RoHS compliant
- Gripper nger material
- VMQ (silicone), metal detectable
