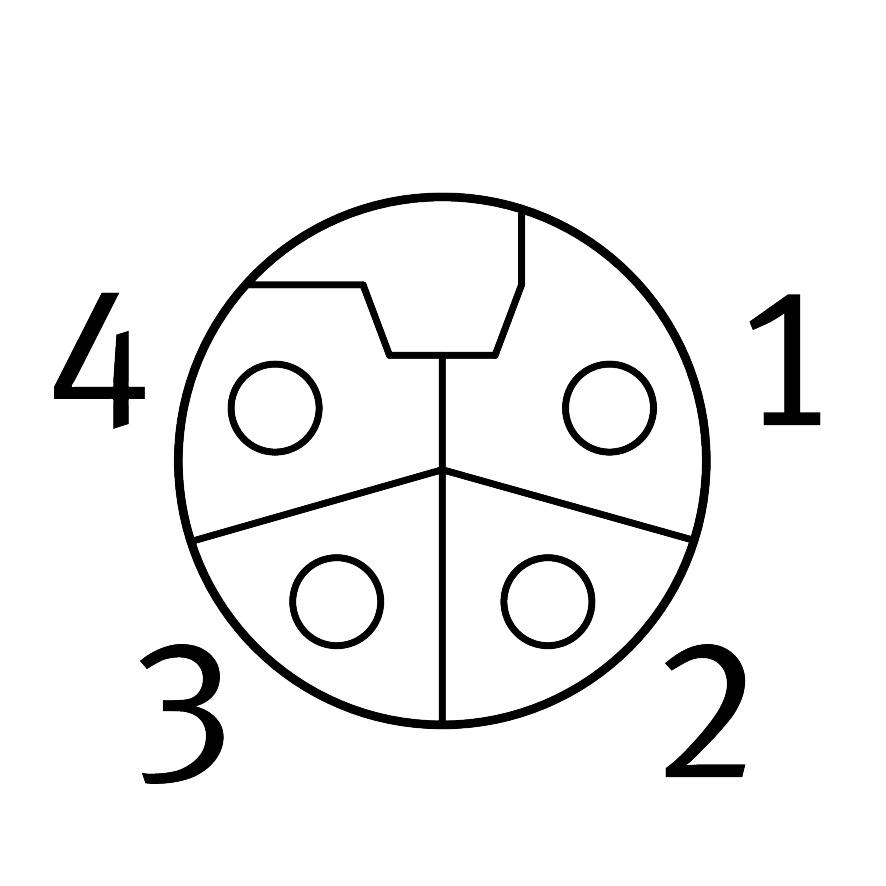

Reference imageConfirm configuration by manufacturer part number.
Festo
8203701
Power supply socket NECL-L12G4-C2-Q10
The Festo 8203701 is an industrial component featuring a straight M12x1 L-coded socket with four pins for power supply, designed for screwed mounting in accordance with EN 61076-2-111. It supports a DC operating voltage range up to 63 V, a 16 A current rating at 40°C, a 1.5 kV surge resistance, and accepts cable diameters of 8-13 mm with a nominal conductor cross section of 2.5 mm² (AWG14) or max. 1.5 mm² (AWG16) with wire end sleeves. Certified as c UL us-recognized under UL file E474609, this IP65 and IP67 rated component utilizes a screw terminal connection technology on connection 2 and weighs 49.18 g. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203701
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203701.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-111
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL E474609
- Type of mounting
- Screwed
- Cable outlet
- Straight
- Product weight
- 49.18 g
- Electrical connection 1, function
- Power supply
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M12x1, L-coded as per EN 61076-2-111
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 2, connection technology
- Screw terminal
- DC operating voltage range
- 0 V...63 V
- Nominal operating voltage DC
- 63 V
- Current rating at 40° C
- 16 A
- Surge resistance
- 1.5 kV
- Approved cable diameter
- 8-13 mm for electrical connection 1
- Nominal conductor cross section
- 2.5 mm² | AWG14
- Information on port cross section
- max. 1.5 mm²/AWG16 when using wire end sleeves
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -40 °C...105 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA
- Material of screw-type lock
- Die-cast zinc, nickel-plated
- Material of pin contacts
- Gold-plated copper alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8203701. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
