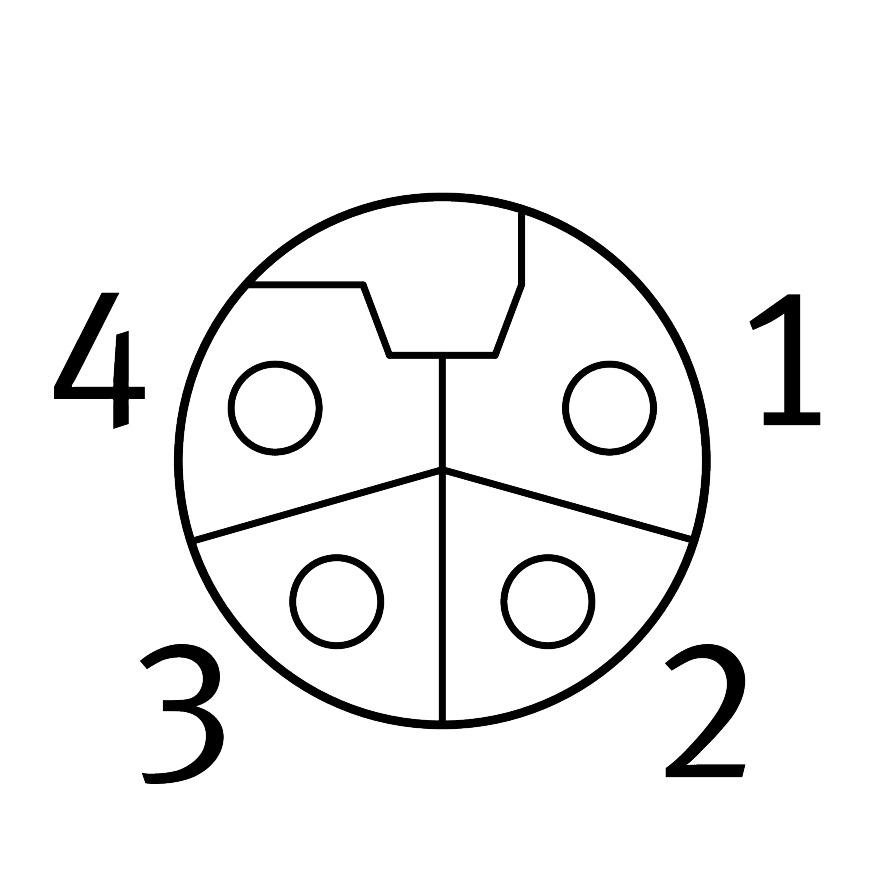

Reference imageConfirm configuration by manufacturer part number.
Festo
8203702
Power supply socket NECL-L12W4-C2-Q10
The Festo 8203702 is an industrial power supply component featuring an M12x1, L-coded round socket connection with four pins and screw terminal termination, built in accordance with EN 61076-2-111. This c UL us-recognized unit supports a DC operating voltage range up to 63 V, a 16 A current rating at 40°C, and a 1.5 kV surge resistance, with an angled cable outlet that rotates through 72° for 8-13 mm approved cable diameters. Weighing 52.31 g, the screwed-mounting part accommodates a nominal conductor cross section of 2.5 mm² (AWG14) or max. 1.5 mm² (AWG16) with wire end sleeves. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203702
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203702.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-111
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL E474609
- Type of mounting
- Screwed
- Cable outlet
- Angled
- Note on cable outlet
- Can be rotated through 72°
- Product weight
- 52.31 g
- Electrical connection 1, function
- Power supply
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M12x1, L-coded as per EN 61076-2-111
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 2, connection technology
- Screw terminal
- DC operating voltage range
- 0 V...63 V
- Nominal operating voltage DC
- 63 V
- Current rating at 40° C
- 16 A
- Surge resistance
- 1.5 kV
- Approved cable diameter
- 8-13 mm for electrical connection 1
- Nominal conductor cross section
- 2.5 mm² | AWG14
- Information on port cross section
- max. 1.5 mm²/AWG16 when using wire end sleeves
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -40 °C...105 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA
- Material of screw-type lock
- Die-cast zinc, nickel-plated
