Festo
8203726

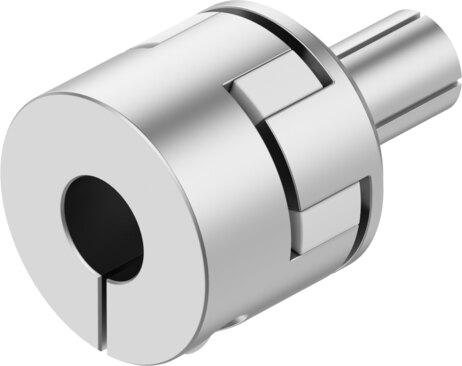

Coupling EAMD-42-40-16-16X25-U
The Festo 8203726 is an industrial component featuring a size 42 construction with a nominal length of 40 mm and dual 16 mm holder diameters. This unit supports any mounting position, operates up to a maximum rotational speed of 6000 rpm, delivers a transferable torque of 21 Nm, and has a mass moment of inertia of 38 kgmm² at a product weight of 194 g. It operates and stores within a temperature range of -25 °C to 60 °C, accommodates 0 to 95% relative air humidity, meets VDMA24364-B2-L LABS conformity, and includes RoHS compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203726
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203726.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 16 mm
- Diameter of holder 2
- 16 mm
- Size
- 42
- Nominal length
- 40 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 38 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 194 g
- Note on materials
- RoHS compliant
