Name: Festo 8203976 Plastic tubing PUN-H-3/8-TSW-150-CB
Brand: Festo

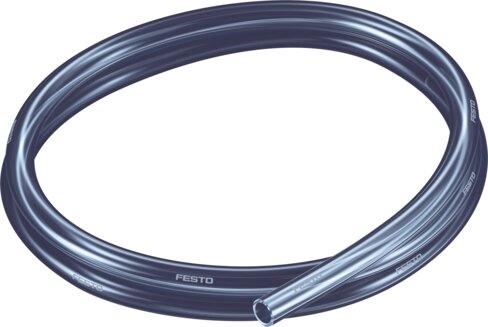

Plastic tubing PUN-H-3/8-TSW-150-CB

This Festo industrial component (part number 8203976) is a translucent black TPE-U ether-based pneumatic tubing featuring a 3/8-inch external diameter and a Shore hardness of D 52 +/-3. It accommodates compressed air per ISO 8573-1:2010 [7:-:-] and liquid water, operating across a temperature-dependent pressure range of -14.4 psi to 145 psi and ambient temperatures from -31 °F to 145 °F. The tubing exhibits a minimum bending radius of 0.082 feet, a flow-rate relevant bending radius of 0.171 feet, a product weight of 5.16 oz/ft, and is suitable for energy chains as well as Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8203976
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8203976.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

External-Ø inches: 3/8
Bending radius relevant for ow rate: 0.171 Feet
Min. bending radius: 0.082 Feet
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Temperature-dependent operating pressure: -14.4 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -31 °F...145 °F
Product weight by length: 5.16 oz/ft
Pneumatic connection: For plug connection outside diameter 3/8"
Color: translucent black
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
