8203979

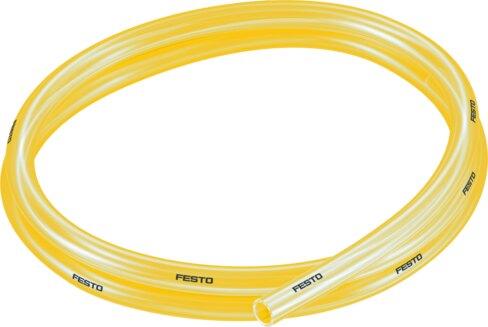

Name: Festo 8203979 Plastic tubing PUN-H-3/8-TGE-150-CB
Brand: Festo

Plastic tubing PUN-H-3/8-TGE-150-CB

This Festo 3/8-inch industrial component features an ether-based TPE-U construction in translucent yellow with a Shore hardness of D 52 +/-3 and a weight of 5.16 oz/ft. It delivers a temperature-dependent operating pressure from -14.4 psi to 145 psi for compressed air and water, with a minimum bending radius of 0.082 feet and suitability for energy chains. The part complies with UL94 HB fire testing, VDMA24364-B2-L LABS conformity, RoHS regulations, and reduced Cu/Zn/Ni values for Li-ion battery production. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8203979
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8203979.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

External-Ø inches: 3/8
Bending radius relevant for ow rate: 0.171 Feet
Min. bending radius: 0.082 Feet
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Temperature-dependent operating pressure: -14.4 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -31 °F...145 °F
Product weight by length: 5.16 oz/ft
Pneumatic connection: For plug connection outside diameter 3/8"
Color: translucent yellow
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8203979. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
