Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

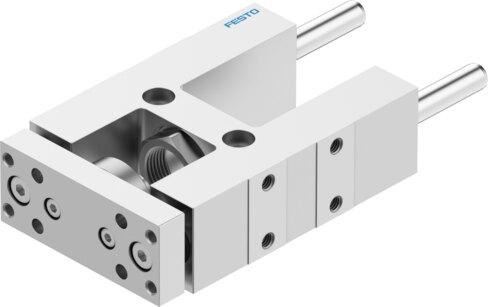

Reference imageConfirm configuration by manufacturer part number.
Festo
8204033
Guide unit FEN-25-25-KF
Engineered by Festo with size 25 dimensions and a 25 mm stroke, this industrial component features a structural guide design utilizing a recirculating ball bearing. It operates within an ambient temperature range of -20 °C to 80 °C in any mounting position while supporting a moving mass of 299 g and a displacement force of 15 N, with explosion prevention and protection conforming to the provided certificate information and LABS conformity per VDMA24364-B2-L. The unit withstands maximum dynamic forces of 520 N for Fy and Fz, static forces of 830 N for Fy and Fz, dynamic torques of 15 Nm for Mx and 20 Nm for My and Mz, and static moments of 24 Nm for Mx and 31 Nm for My and Mz. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204033
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204033.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 25 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 520 N
- Max. force Fy static
- 830 N
- Max. force Fz
- 520 N
- Max. force Fz static
- 830 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 24 Nm
- Max. torque My
- 20 Nm
- Max. static moment My
- 31 Nm
- Max. torque Mz
- 20 Nm
- Max. static moment Mz
- 31 Nm
- Displacement force
- 15 N
- Moving mass
- 299 g
- Product weight
- 843 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204033. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
