Festo
8204035

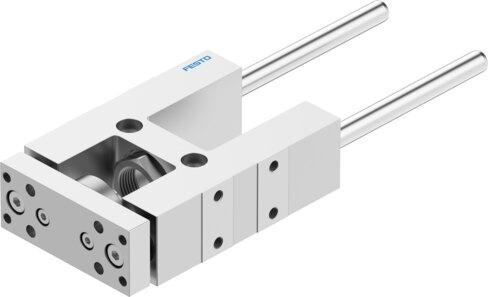

Guide unit FEN-25-80-KF
This Festo industrial component features a size 25 structural guide design with an 80 mm stroke and an integrated recirculating ball bearing guide supporting any mounting position. It operates within an ambient temperature range of -20 °C to 80 °C, handling maximum dynamic and static forces of 520 N and 830 N respectively for both Fy and Fz axes, along with specific moment capacities up to 31 Nm static. The unit exhibits a 15 N displacement force, a 365 g moving mass, VDMA24364-B2-L LABS conformity, and explosion prevention governed by the certificate documentation. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204035
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204035.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 80 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 520 N
- Max. force Fy static
- 830 N
- Max. force Fz
- 520 N
- Max. force Fz static
- 830 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 24 Nm
- Max. torque My
- 20 Nm
- Max. static moment My
- 31 Nm
- Max. torque Mz
- 20 Nm
- Max. static moment Mz
- 31 Nm
- Displacement force
- 15 N
- Moving mass
- 365 g
- Product weight
- 909 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
