Festo
8204036

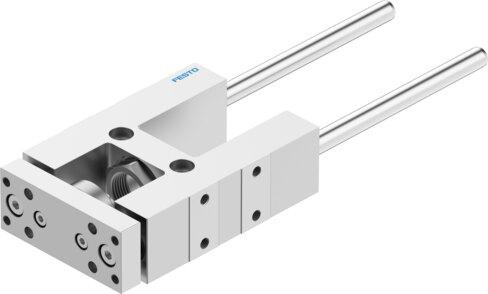

Guide unit FEN-25-100-KF
The Festo part number 8204036 is an industrial component featuring a size 25 structural design with a 100 mm stroke and a recirculating ball bearing guide supporting any mounting position. It operates within an ambient temperature range of -20 °C to 80 °C, handling a moving mass of 389 g with a displacement force of 15 N, while accommodating maximum dynamic forces of 520 N (Fy and Fz) and static forces of 830 N (Fy and Fz). This unit sustains maximum dynamic moments of 15 Nm for Mx and 20 Nm for My and Mz, alongside maximum static moments of 24 Nm for Mx and 31 Nm for My and Mz, adhering to VDMA24364-B2-L LABS conformity and certificate-specific explosion protection guidelines. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204036
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204036.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 100 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 520 N
- Max. force Fy static
- 830 N
- Max. force Fz
- 520 N
- Max. force Fz static
- 830 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 24 Nm
- Max. torque My
- 20 Nm
- Max. static moment My
- 31 Nm
- Max. torque Mz
- 20 Nm
- Max. static moment Mz
- 31 Nm
- Displacement force
- 15 N
- Moving mass
- 389 g
- Product weight
- 933 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
