Festo
8204042

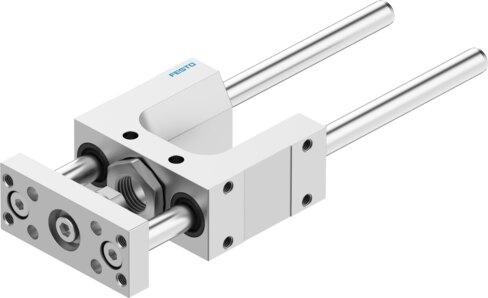

Guide unit FEN-12/16-80-GF
The Festo 8204042 is an industrial component featuring a structural guide design with a 12/16 size and an 80 mm stroke. This unit incorporates a plain-bearing guide utilizing a high-alloy steel guide component, an anodized wrought aluminum alloy housing, and an anodized wrought aluminum alloy yoke plate, yielding a product weight of 586 g with a moving mass of 257 g and a 15 N displacement force. It operates within an ambient temperature range of -20 °C to 80 °C, supports mounting in any position via internal thread, complies with VDMA24364-B2-L LABS (PWIS) standards, includes RoHS-compliant materials, and requires observation of certificate information for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204042
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204042.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12/16
- Stroke
- 80 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 15 N
- Moving mass
- 257 g
- Product weight
- 586 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204042. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
