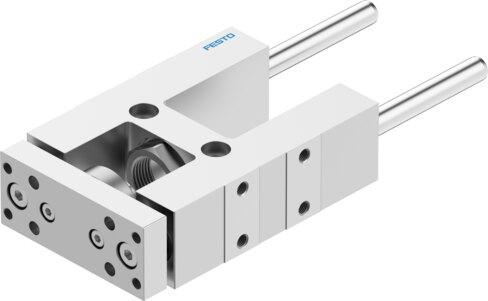

Reference imageConfirm configuration by manufacturer part number.
Festo
8204052
Guide unit FEN-25-50-GF
The Festo 8204052 is an industrial component featuring a structural design with a size 25, a 50 mm stroke, and a plain-bearing guide comprised of high-alloy steel. Constructed with an anodized wrought aluminum alloy housing and yoke plate, this unit provides a displacement force of 15 N, a moving mass of 329 g, a total product weight of 926 g, and supports any mounting position via internal thread. It operates within an ambient temperature range of -20 °C to 80 °C, complies with VDMA24364-B2-L LABS conformity and RoHS material notes, and requires adherence to certificate instructions for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204052
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204052.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 50 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 15 N
- Moving mass
- 329 g
- Product weight
- 926 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204052. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
