Festo
8204055

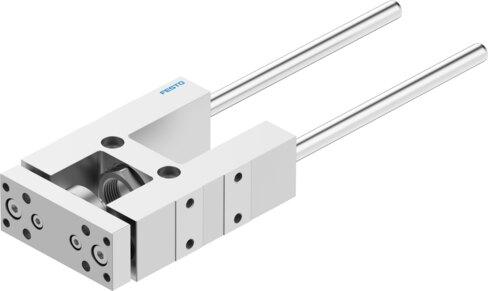

Guide unit FEN-25-125-GF
The Festo 8204055 is an industrial component featuring a size of 25, a 125 mm stroke, and a plain-bearing guide structural design with an integrated plain-bearing guide. It incorporates an anodized wrought aluminum alloy housing and yoke plate, a high-alloy steel guide component, and offers any mounting position via internal thread with a displacement force of 15 N and moving mass of 419 g at a product weight of 1016 g. Operating within an ambient temperature range of -20 °C to 80 °C, this RoHS-compliant unit complies with VDMA24364-B2-L LABS conformity and requires adherence to certified explosion prevention and protection information. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204055
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204055.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 125 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 15 N
- Moving mass
- 419 g
- Product weight
- 1016 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204055. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
