Festo
8204060

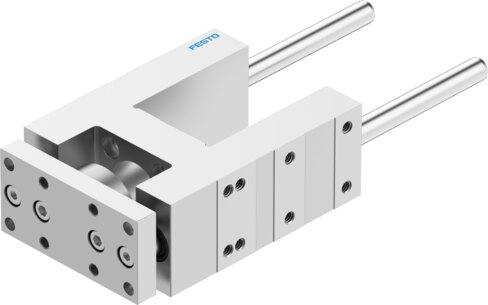

Guide unit FENG-32-80-GF
The Festo part number 8204060 is an industrial component featuring a size 32 specification, an 80 mm stroke, and a plain-bearing guide within a structural guide design. Constructed with a wrought aluminum alloy anodized housing and yoke plate alongside a high-alloy steel guide component, it provides a 30 N displacement force, a moving mass of 614 g, and a total product weight of 1706 g. This component supports mounting in any position using internal thread, operates within an ambient temperature range of -20 °C to 80 °C, maintains VDMA24364-B2-L LABS conformity, and complies with RoHS material standards while requiring adherence to certificate information for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204060
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204060.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 80 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 30 N
- Moving mass
- 614 g
- Product weight
- 1706 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204060. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
