Festo
8204070

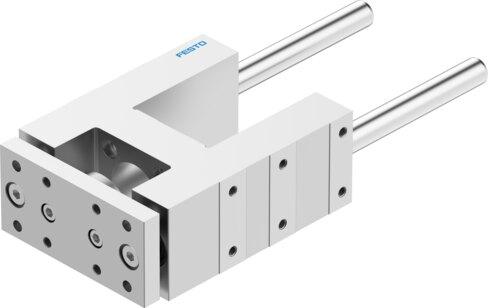

Guide unit FENG-40-100-GF
The Festo 8204070 is an industrial component featuring a size 40 structural design with a 100 mm stroke and a plain-bearing guide utilizing high-alloy steel guide components. Constructed with an anodized wrought aluminum alloy housing and yoke plate, this unit incorporates internal thread mounting, an ambient temperature range of -20 °C to 80 °C, and a displacement force of 30 N. It offers VDMA24364-B2-L LABS conformity, RoHS compliant materials, a moving mass of 1092 g, a total product weight of 2790 g, and any mounting position compatibility, while adhering to the certificate for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204070
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204070.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 100 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 30 N
- Moving mass
- 1092 g
- Product weight
- 2790 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204070. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
