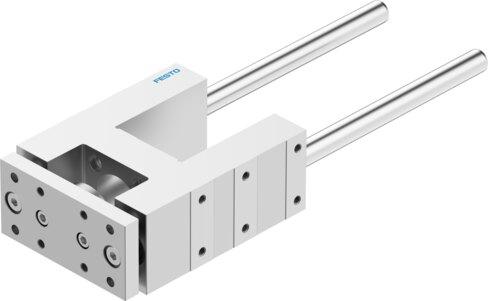

Reference imageConfirm configuration by manufacturer part number.
Festo
8204071
Guide unit FENG-40-160-GF
The Festo 8204071 is an industrial component featuring a size 40 structural design with a plain-bearing guide and a stroke of 160 mm. This unit incorporates a wrought aluminum alloy anodized housing and yoke plate, a high-alloy steel guide component, and internal thread mounting, delivering a 30 N displacement force alongside a 1278 g moving mass and a 2976 g product weight. Certified for an ambient temperature range of -20 °C to 80 °C, it supports any mounting position, adheres to VDMA24364-B2-L LABS conformity, includes RoHS-compliant materials, and requires observation of the certificate for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204071
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204071.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 160 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 30 N
- Moving mass
- 1278 g
- Product weight
- 2976 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204071. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
