Festo
8204080

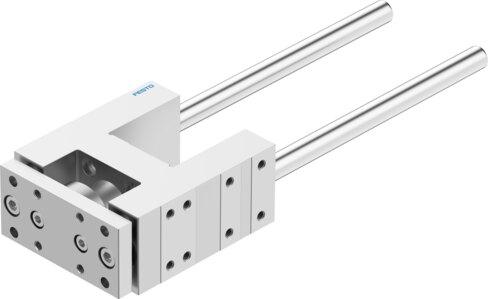

Guide unit FENG-50-250-GF
The Festo 8204080 industrial component features a size 50 structural design with a 250 mm stroke and a plain-bearing guide utilizing high-alloy steel guide components. Constructed with an anodized wrought aluminum alloy housing and yoke plate, this unit accommodates any mounting position via internal thread and operates within an ambient temperature range of -20 °C to 80 °C. It delivers a displacement force of 50 N, a moving mass of 2614 g, a product weight of 5390 g, and includes RoHS compliant materials alongside VDMA24364-B2-L LABS conformity. Explosion prevention and protection requires adherence to the provided certificate information. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204080
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204080.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke
- 250 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 50 N
- Moving mass
- 2614 g
- Product weight
- 5390 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204080. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
