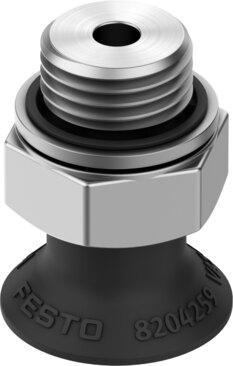

Reference imageConfirm configuration by manufacturer part number.
Festo
8204259
Suction cup with connection VAS-15-1/8-NBR-F1A
This Festo industrial component features a round, flat suction cup with a 15 mm diameter, a 12 mm effective diameter, and a 0.328 cm³ volume providing a holding force of 7.9 N at a nominal operating pressure of -0.07 MPa. Designed with an upward connection position, a 1.2 mm height compensation, and G1/8 vacuum connection, the 3.8 g black part operates between -20 °C and 80 °C using atmospheric air under moderate corrosion stress. It conforms to VDMA24364-A1/A2-L and is suitable for the production of Li-ion batteries with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204259
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204259.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 1.2 mm
- Nominal width
- 3 mm
- Suction cup diameter
- 15 mm
- Suction cup volume
- 0.328 cm³
- Effective suction cup diameter
- 12 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 7.9 N
- Product weight
- 3.8 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/8
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204259. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
