Festo
8204260

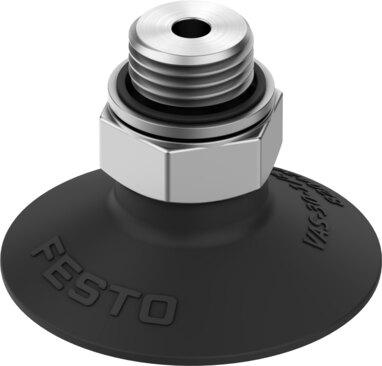

Suction cup with connection VAS-30-1/8-NBR-F1A
The Festo 8204260 is a round, flat industrial component featuring a 30 mm suction cup diameter, a 25 mm effective suction cup diameter, and a 1.9 mm height compensation. Designed with an upward connection position and a G1/8 vacuum connection, this black 5.3 g unit operates within a pressure range of -0.095 MPa to 0 MPa and delivers a holding force of 34 N at its nominal operating pressure of -0.07 MPa. It accommodates an ambient temperature range of -20 °C to 80 °C, possesses moderate corrosion stress resistance (CRC 2), and meets VDMA24364-A1/A2-L LABS conformity for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204260
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204260.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 1.9 mm
- Nominal width
- 3 mm
- Suction cup diameter
- 30 mm
- Suction cup volume
- 1.29 cm³
- Effective suction cup diameter
- 25 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 34 N
- Product weight
- 5.3 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/8
- Color
- Black
- Shore hardness
- 70 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
