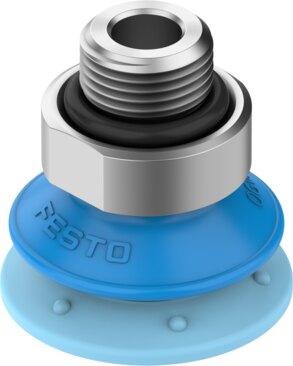

Name: Festo 8204816 Suction cup with connection OGVN-20-A-U-G18
Brand: Festo

Suction cup with connection OGVN-20-A-U-G18

Engineered by Festo, part number 8204816 is a 4.1 g round 1.5-fold protective bellows industrial component featuring a 20 mm suction cup diameter, 4 mm nominal width, and 4.6 mm height compensation. Designed with a top connection position for G1/8 vacuum mounting, this unit delivers a holding force of 14.5 N at its nominal operating pressure of -70 kPa (-0.7 bar / -10.15 psi) across an operating range of -95 kPa to 0 kPa (-13.775 psi to 0 psi). It possesses a CRC rating of 2 for moderate corrosion stress, VDMA24364 Zone III LABS conformity, and F1a suitability for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8204816
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8204816.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 4.6 mm
Nominal width: 4 mm
Suction cup diameter: 20 mm
Suction cup volume: 1.04 cm³
Connection position: up
Mounting position: Any
Suction cup shape: round protective bellows 1.5-fold
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: 10 °C...45 °C
Holding force at nominal operating pressure: 14.5 N
Product weight: 4.1 g
Type of mounting: Via vacuum connection
Vacuum connection: G1/8
Color: blue/light blue
Shore hardness: A 30 +/-5 | A 70 +/-5
Material of screwed plug: Wrought aluminum alloy
Note on materials: RoHS compliant
Suction cup material: PUR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8204816. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
