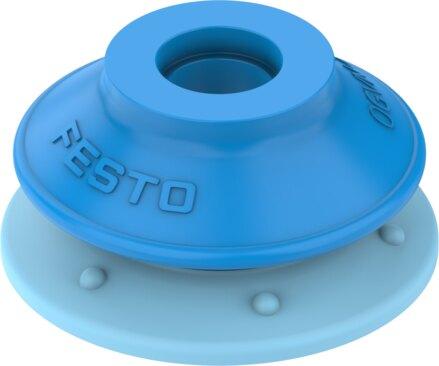

Reference imageConfirm configuration by manufacturer part number.
Festo
8204817
Suction cup with connection OGVN-20-A-U
The Festo 8204817 is a round, 1.5-fold protective bellows suction cup featuring a 20 mm diameter, a 4.6 mm height compensation, and a 1.04 cm³ volume with a blue and light blue PUR construction of Shore A 30 +/-5 and A 70 +/-5 hardness. Designed with an upward connection position for mounting via vacuum connection in any position, it operates within a pressure range of -95 kPa to 0 kPa at an ambient temperature of 10 °C to 45 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-]. This RoHS compliant component weighs 1.1 g, achieves a moderate corrosion resistance class (CRC) of 2, meets VDMA24364 Zone III LABS conformity, and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204817
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204817.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 4.6 mm
- Suction cup diameter
- 20 mm
- Suction cup volume
- 1.04 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 10 °C...45 °C
- Product weight
- 1.1 g
- Type of mounting
- Via vacuum connection
- Color
- blue/light blue
- Shore hardness
- A 30 +/-5 | A 70 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204817. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
