Festo
8204818

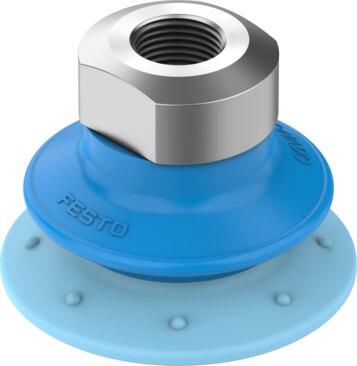

Suction cup with connection OGVN-35-A-U-G18-F
This Festo industrial component, part number 8204818, is a round protective bellows 1.5-fold suction cup featuring a 35 mm diameter, 9.5 mm height compensation, 4.4 cm³ volume, and a G1/8 internal thread vacuum connection positioned on top. It operates within a pressure range of -95 kPa to 0 kPa, delivering a holding force of 39.5 N at its nominal operating pressure of -70 kPa with atmospheric air as the operating medium. The 11 g assembly exhibits a moderate corrosion stress resistance class (CRC 2), VDMA24364 Zone III LABS conformity, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204818
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204818.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 9.5 mm
- Nominal width
- 5 mm
- Suction cup diameter
- 35 mm
- Suction cup volume
- 4.4 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 10 °C...45 °C
- Holding force at nominal operating pressure
- 39.5 N
- Product weight
- 11 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/8
- Color
- blue/light blue
- Shore hardness
- A 30 +/-5 | A 70 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
