Reference imageConfirm configuration by manufacturer part number.
Festo
8204819

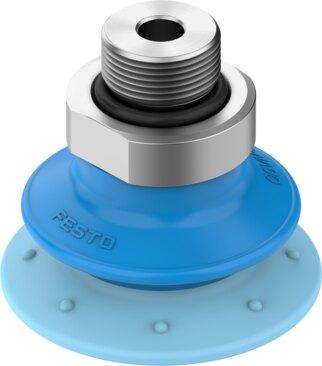

Suction cup with connection OGVN-35-A-U-G14
This Festo industrial component, part number 8204819, features a round 1.5-fold protective bellows suction cup with a 35 mm diameter, a 5 mm nominal width, and a 9.5 mm height compensation. Engineered for a nominal operating pressure of -70 kPa with an operating pressure range from -95 kPa to 0 kPa, it delivers a holding force of 39.5 N at nominal operating pressure and a suction cup volume of 4.4 cm³. The unit includes a G1/4 vacuum connection oriented upward, allows for any mounting position via the vacuum connection, and possesses a product weight of 13 g with a moderate corrosion resistance class (CRC 2). Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204819
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204819.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 9.5 mm
- Nominal width
- 5 mm
- Suction cup diameter
- 35 mm
- Suction cup volume
- 4.4 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 10 °C...45 °C
- Holding force at nominal operating pressure
- 39.5 N
- Product weight
- 13 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/4
- Color
- blue/light blue
- Shore hardness
- A 30 +/-5 | A 70 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204819. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
