Festo
8204833

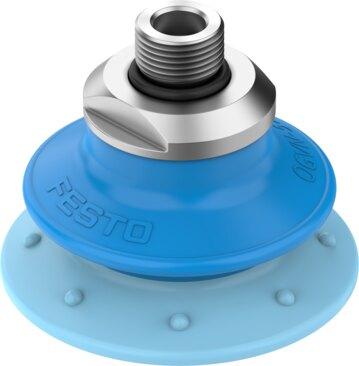

Suction cup with connection OGVN-52-A-U-G14
The Festo part number 8204833 is a round 1.5-fold protective bellows industrial component featuring a 52 mm suction cup diameter, 11.2 mm height compensation, and a nominal width of 6 mm. This 27.1 g assembly delivers a holding force of 85 N at a nominal operating pressure of -70 kPa (-0.7 bar), operating within a pressure range of -95 kPa to 0 kPa and an ambient temperature of 10 °C to 45 °C. Rated with a CRC of 2, VDMA24364 Zone III LABS conformity, and F1a Li-ion battery production suitability, it connects via a top G1/4 vacuum connection and supports any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204833
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204833.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 11.2 mm
- Nominal width
- 6 mm
- Suction cup diameter
- 52 mm
- Suction cup volume
- 13.3 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 10 °C...45 °C
- Holding force at nominal operating pressure
- 85 N
- Product weight
- 27.1 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/4
- Color
- blue/light blue
- Shore hardness
- A 30 +/-5 | A 70 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204833. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
