Festo
8204835

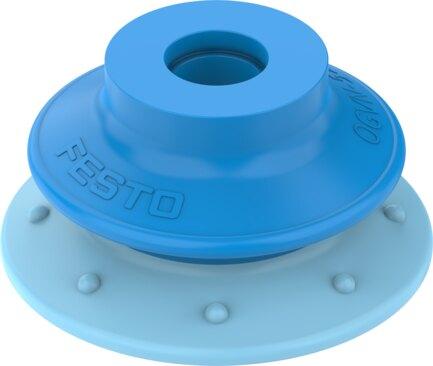

Suction cup with connection OGVN-52-A-U
The Festo part number 8204835 is a round, 1.5-fold protective bellows industrial component featuring a 52 mm suction cup diameter, a 13.3 cm³ volume, and an 11.2 mm height compensation. Constructed from PUR with a blue and light blue color, dual Shore hardness (A 30 +/-5 and A 70 +/-5), and RoHS-compliant materials, this 15 g component operates between -95 kPa and 0 kPa with a nominal operating pressure of -70 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-]. It achieves moderate corrosion resistance (CRC 2), VDMA24364 Zone III LABS conformity, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a), mounting via an upward vacuum connection in any orientation within an ambient temperature range of 10 °C to 45 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204835
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204835.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 11.2 mm
- Suction cup diameter
- 52 mm
- Suction cup volume
- 13.3 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 10 °C...45 °C
- Product weight
- 15 g
- Type of mounting
- Via vacuum connection
- Color
- blue/light blue
- Shore hardness
- A 30 +/-5 | A 70 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8204835. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
