Festo
8204838

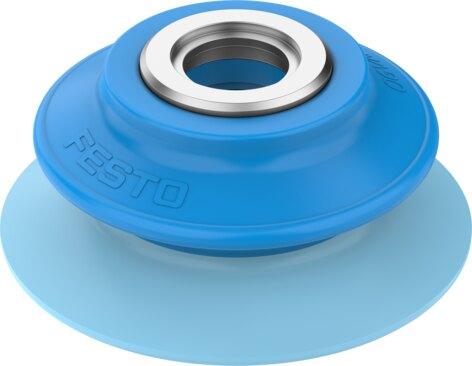

Suction cup with connection OGVN-75-A-U
The Festo 8204838 is a 40 g industrial component featuring a round 75 mm protective bellows 1.5-fold suction cup made of PUR with a 16 mm height compensation and 42.8 cm³ volume. Rated for an operating pressure of -95 kPa to 0 kPa and an ambient temperature range of 10 °C to 45 °C, this blue and light blue unit provides CRC 2 moderate corrosion stress resistance and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values. The component supports any mounting position via its upward vacuum connection and operates using atmospheric air compliant with ISO 8573-1:2010 [7:-:-]. Request a quote today by submitting the exact part number, required quantity, and your application specifications.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8204838
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8204838.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 16 mm
- Suction cup diameter
- 75 mm
- Suction cup volume
- 42.8 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 10 °C...45 °C
- Product weight
- 40 g
- Type of mounting
- Via vacuum connection
- Color
- blue/light blue
- Shore hardness
- A 30 +/-5 | A 70 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
