Festo
8205392

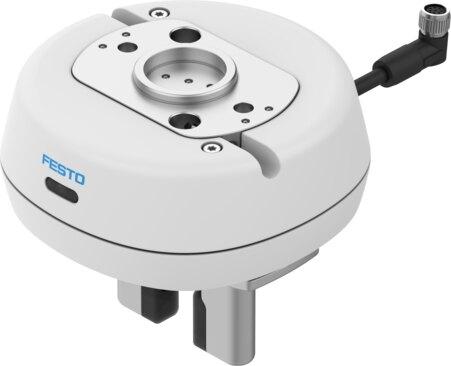

Parallel grippers HPPH-16-16-NC-N-SR12
The Festo part number 8205392 is a double-acting pneumatic parallel gripper featuring two jaws, a size 16 designation, and a complete stroke of 16 mm with 8 mm of stroke per jaw. This component utilizes a ball guide, a gear rack and pinion mechanism, and a double piston structural design with flat mounting for gripper fingers, providing a repetition accuracy of 0.06 mm and a gripping force backup during closing. Operating pressure ranges from 0.25 MPa to 0.7 MPa (2.5 bar to 7 bar), and the unit includes an integrated linear potentiometer for position sensing alongside blue LED switching status indication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8205392
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8205392.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Complete stroke
- 16 mm
- Stroke per gripper jaw
- 8 mm
- Max. gripper jaw angular play ax, ay
- 0 deg
- Max. gripper jaw backlash Sz
- 0 mm
- Pneumatic gripper repetition accuracy
- 0.06 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- At one end | Not adjustable
- Gripper function
- Parallel
- Gripping force backup
- During closing
- Structural design
- Lateral connection direction | Double piston | Flat mounting type for gripper ngers | Guide | Gear rack/pinion | with gripper nger | Pneumatic gripper | Positively driven motion sequence
- Guide
- Ball guide
- Position sensing
- With integrated linear potentiometer
- Switching status indication
- LED blue, switching status via signal input
- Operating pressure
- 0.25 MPa...0.7 MPa | 2.5 bar...7 bar | 36.25 psi...101.5 psi
- HRC operating pressure
- 0.25 MPa...0.5 MPa | 2.5 bar...5 bar | 36.25 psi...72.5 psi
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 180 ms
- Min. closing time at 6 bar
- 90 ms
