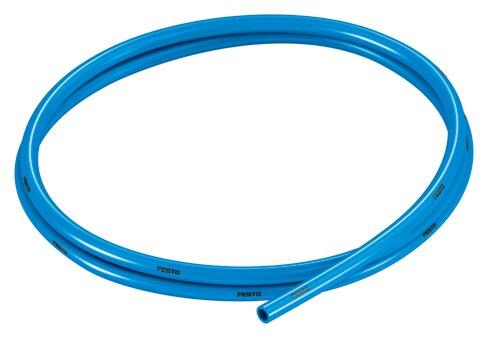

Name: Festo 8205513 Plastic tubing PUN-H-6X1-BL-25
Brand: Festo

Plastic tubing PUN-H-6X1-BL-25

The Festo 8205513 industrial component is a 6 mm outside diameter and 4 mm inside diameter TPE-U, ether-based pneumatic tubing featuring a minimum bending radius of 10 mm and a bending radius relevant for flow rate of 26 mm. Suitable for energy chains, this TÜV-certified part operates within a temperature range of -35 °C to 60 °C and handles compressed air according to ISO 8573-1:2010 [7:-:-] or liquid water at pressures ranging from -0.095 MPa to 0.6 MPa across its entire temperature range, extending up to 1 MPa depending on temperature. The material conforms to UL94 HB fire testing, VDMA24364-B2-L LABS conformity, and reduced Cu/Zn/Ni values (F1a) for Li-ion battery production while weighing 0.0183 kg/m for plug connections or barbed fittings. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8205513
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8205513.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 6 mm
Bending radius relevant for ow rate: 26 mm
Inside diameter: 4 mm
Min. bending radius: 10 mm
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0183 kg/m
Pneumatic connection: For plug connection outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut
Color: Blue
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
