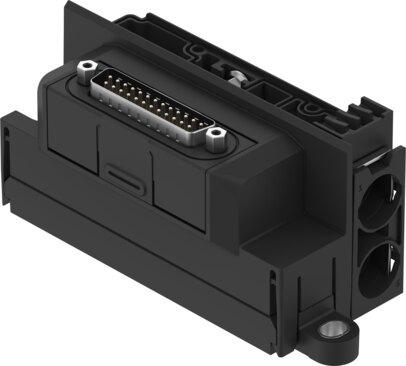

Reference imageConfirm configuration by manufacturer part number.
Festo
8206421
Manifold sub-base VABX-A-P-EL-E12-MS1T-SHUH-XL
The Festo part number 8206421 is an industrial component featuring a valve manifold design with interchangeable valve sizes and a lateral connection position, compatible with the VTUX-A-P valve manifold. Measuring 49.9 mm x 117.4 mm x 53.9 mm in width, length, and height, this size 1 | 2 unit supports a maximum of 24 solenoid coils and operates at a nominal DC load voltage of 24 V, requiring SELV/PELV fixed power supplies. It carries RCM compliance, KC-EMV, CE, and UKCA markings, demonstrates a contamination level of 2, and achieves a corrosion resistance class of 2 with a degree of protection rated at IP40. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8206421
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8206421.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Connection position
- Lateral
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 24
- Compatible with
- Valve manifold VTUX-A-P
- Dimensions W x L x H
- 49.9 mm x 117.4 mm x 53.9 mm
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Nominal operating voltage DC load
- 24 V
- Contamination level
- 2
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -20 °C...50 °C
- Max. tightening torque for wall mounting
- 6 Nm
- Product weight
- 159 g
- Electrical actuation
- Multi-pin
- Max. cable length
- 30 m
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 25
- Cable outlet
- Straight
