Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8207225

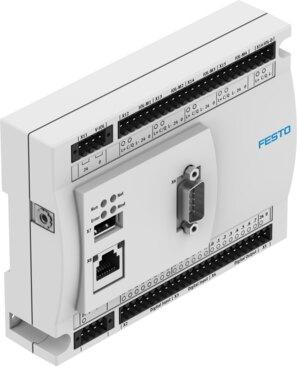

Controller CECC-LK-BA
The Festo 8207225 industrial component operates on a 24 V DC nominal voltage with an operating range of 19.2 to 30 V DC, a current consumption of 120 mA, and a maximum power supply of 6 A. This IP20-rated, protection class III device features a dual core 500 MHz CPU, 12 digital inputs, LED status indications, and a socket strip I/O electrical connection with a 3.5 mm grid. Weighing 270 g, the unit is constructed in compliance with RoHS standards, VDMA24364-B2-L LABS conformity, and CRC 0 corrosion resistance, while meeting EN 61131-2 standards for vibration and shock resistance within an ambient temperature range of 0 °C to 55 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8207225
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8207225.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Nominal operating voltage DC
- 24 V
- Operating voltage
- 19.2 - 30 V DC
- Current consumption
- 120 mA
- Max. power supply
- 6 A
- Ambient temperature
- 0 °C...55 °C
- Storage temperature
- -25 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP20
- Protection class
- III
- Product weight
- 270 g
- Resistance to vibration
- according to EN 61131-2
- Resistance to shock
- according to EN 61131-2
- Electrical connection technology I/O
- Socket strip, grid 3.5 mm
- Status indications
- LED
- CPU data
- Dual core 500 MHz
- Digital inputs, number
- 12
- Digital inputs, switching logic
- Positive logic (PNP)
- Digital inputs, fast clock pulse inputs
- 2, each with max. 180 kHz
- Digital inputs, input signal delay
- 3 ms typ.
- Digital inputs, input voltage/current
- 24 VDC
- Digital inputs, nominal value for TRUE
- >= 15 VDC
- Digital inputs, nominal value for FALSE
- <= 5 VDC
- Digital inputs, electrical isolation
- Yes, optocoupler
- Digital inputs, status indication
- LED
- Max. cable length
- 30 m inputs
- Digital outputs, number
- 8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8207225. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
