Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8207656

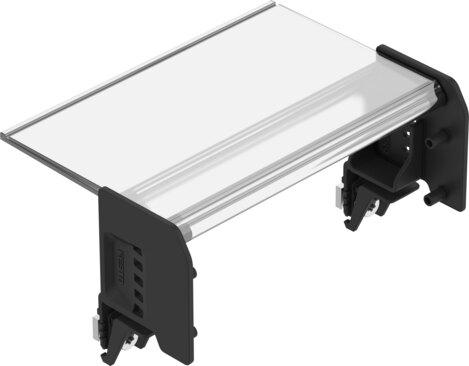

Label holder ASCF-RP3-XA-84
The Festo part number 8207656 is an industrial component measuring 53 mm in width, 7 mm in height, and 84 mm in length, with a product weight of 18 g and a size 1 designation. This component accommodates a maximum of 8 valve positions and is compatible with valve manifolds VTUX-A-P and VTUX-A-S. Built with a CRC rating of 1, RoHS-compliant materials, a reinforced PA inscription label holder, and PVC sign and inspection window materials, it operates within an ambient temperature range of -5 °C to 50 °C and a storage temperature range of -20 °C to 70 °C using a maximum tightening torque of 0.5 Nm. Furthermore, it features VDMA24364-B1/B2-L LABS conformity and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8207656
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8207656.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 53 mm
- Height
- 7 mm
- Length
- 84 mm
- Size
- 1
- Pack size
- 1
- Max. no. of valve positions
- 8
- Compatible with
- Valve manifold VTUX-A-P | Valve manifold VTUX-A-S
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Storage temperature
- -20 °C...70 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque
- 0.5 Nm
- Product weight
- 18 g
- Note on materials
- RoHS compliant
- Inscription label holder material
- PA-reinforced
- Sign material
- PVC
- Inspection window material
- PVC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8207656. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
