Festo
8207664

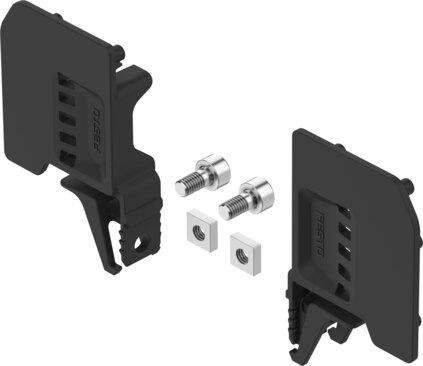

Label holder ASCF-R-XA
The Festo industrial component, part number 8207664, features dimensions of 26 mm width, 7 mm height, and 10.2 mm length with a product weight of 35 g. Compatible with valve manifolds VTUX-A-P and VTUX-A-S in sizes 1 and 2, this RoHS-compliant part offers customer-specified valve positions and a corrosion resistance class of 1. Constructed with a PA-reinforced inscription label holder and PVC sign and inspection window materials, it operates within an ambient temperature range of -5 °C to 50 °C and a maximum tightening torque of 0.5 Nm. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8207664
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8207664.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Height
- 7 mm
- Length
- 10.2 mm
- Size
- 1 | 2
- Pack size
- 1
- Max. no. of valve positions
- Versions according to customer specications possible
- Compatible with
- Valve manifold VTUX-A-P | Valve manifold VTUX-A-S
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Storage temperature
- -20 °C...70 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque
- 0.5 Nm
- Product weight
- 35 g
- Note on materials
- RoHS compliant
- Inscription label holder material
- PA-reinforced
- Sign material
- PVC
- Inspection window material
- PVC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8207664. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
