Name: Festo 8207666 Label holder ASCF-P3-XA-1000
Brand: Festo

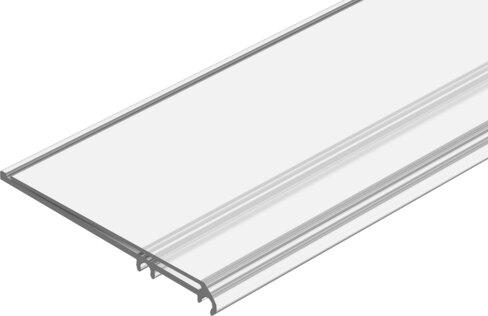

Label holder ASCF-P3-XA-1000

The Festo part number 8207666 is an industrial component measuring 53 mm in width, 7 mm in height, and 1000 mm in length, weighing 940 g. Available in sizes 1 and 2 with a pack size of 5, this RoHS-compliant element features a PA-reinforced inscription label holder along with PVC sign and inspection window materials. It provides a corrosion resistance class of CRC 1, VDMA24364-B1/B2-L LABS conformity, and F1a suitability for Li-ion battery production with reduced Cu/Zn/Ni values. Operating within an ambient temperature range of -5 °C to 50 °C and storage temperatures between -20 °C and 70 °C, it supports a maximum tightening torque of 0.5 Nm and is compatible with VTUX-A-P and VTUX-A-S valve manifolds with custom valve position versions available. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8207666
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8207666.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 53 mm
Height: 7 mm
Length: 1000 mm
Size: 1 | 2
Pack size: 5
Max. no. of valve positions: Versions according to customer specications possible
Compatible with: Valve manifold VTUX-A-P | Valve manifold VTUX-A-S
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
Storage temperature: -20 °C...70 °C
Ambient temperature: -5 °C...50 °C
Max. tightening torque: 0.5 Nm
Product weight: 940 g
Note on materials: RoHS compliant
Inscription label holder material: PA-reinforced
Sign material: PVC
Inspection window material: PVC

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8207666. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
