Festo
8207884

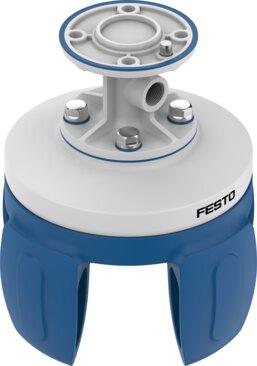

Soft gripper HPSX-100-4-S-40-BU-RA50
The Festo part number 8207884 is a double-acting pneumatic industrial component featuring an adaptive gripper function with 4 gripper fingers and a size 100 designation. It accommodates a working stroke from 30 mm to 125 mm, a minimum gripping diameter of 80 mm, a maximum gripping diameter of 110 mm, and an operating pressure range of -0.085 MPa to 0.02 MPa. This unit provides form-fit and frictionally engaged structural design, an IP69K degree of protection, and corrosion resistance class 4 for particularly high corrosion stress while operating within an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8207884
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8207884.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Working stroke
- 30 mm...125 mm
- Min. diameter to be gripped
- 80 mm
- Max. diameter to be gripped
- 110 mm
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Adaptive
- Number of Gripper ngers
- 4
- Structural design
- form-t | frictionally engaged
- Operating pressure
- -0.085 MPa...0.02 MPa | -0.85 bar...0.2 bar | -12.325 psi...2.9 psi
- Burst pressure of cap
- 0.06 MPa | 0.6 bar | 8.7 psi
- Max. operating frequency of pneumatic gripper
- 5 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...60 °C
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Degree of protection
- IP69K
- Total gripping force
- 23 N
- Product weight
- 632 g
- Type of mounting
- after ISO 9409-1-50-4-M6
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adapter material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8207884. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
