Festo
8207885

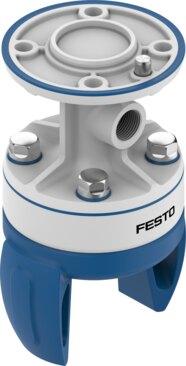

Soft gripper HPSX-40-2-S-40-BU-RA50
The Festo part number 8207885 is a double-acting pneumatic industrial component featuring an adaptive gripper function with 2 fingers and a size 40 rating. It provides a working stroke of 0 mm to 55 mm for gripping diameters ranging from 30 mm to 55 mm using form-fit and frictionally engaged structural design. Operating within a pressure range of -0.085 MPa to 0.02 MPa and a maximum frequency of 5 Hz, this IP69K-rated unit delivers a corrosion resistance class of 4 and functions with compressed air under ISO 8573-1:2010 [7:4:4] standards at ambient temperatures between 0 °C and 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8207885
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8207885.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Working stroke
- 0 mm...55 mm
- Min. diameter to be gripped
- 30 mm
- Max. diameter to be gripped
- 55 mm
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Adaptive
- Number of Gripper ngers
- 2
- Structural design
- form-t | frictionally engaged
- Operating pressure
- -0.085 MPa...0.02 MPa | -0.85 bar...0.2 bar | -12.325 psi...2.9 psi
- Burst pressure of cap
- 0.06 MPa | 0.6 bar | 8.7 psi
- Max. operating frequency of pneumatic gripper
- 5 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...60 °C
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Degree of protection
- IP69K
- Total gripping force
- 5 N
- Product weight
- 240 g
- Type of mounting
- after ISO 9409-1-50-4-M6
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adapter material
- PA-reinforced
