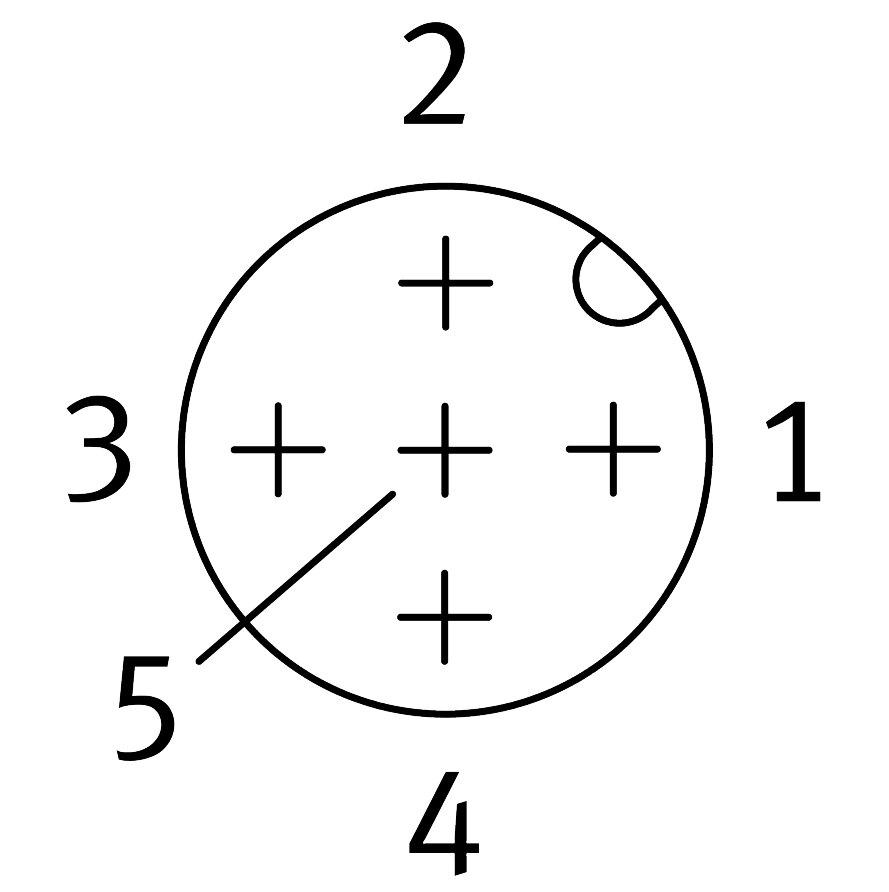

Reference imageConfirm configuration by manufacturer part number.
Festo
8208382
Manifold sub-base VABX-A-S-EL-E12-CTED-MPM12-SHUH-XL
The Festo industrial component, part number 8208382, is designed with dimensions of 26 mm x 104 mm x 92 mm, a lateral connection position, and interchangeable valve sizes for the VTUX-A-S valve manifold. It features built-in reverse polarity protection, an installed inductive protective circuit, module-level LED diagnostics, and internal communication diagnostics for logic supply undervoltage PS and overvoltage PS. Operating at a nominal voltage of 24 VDC for both electronics/sensors and load with a typical intrinsic current consumption of 50 mA and 1.2 W power consumption, the unit supports up to 128 solenoid coils and provides 10 ms of power failure buffering alongside electrical isolation between channels and internal communication. Meeting vibration resistance severity level 2 per FN 942017-4 and EN 60068-2-6 and shock resistance severity level 2 per FN 942017-5 and EN 60068-2-27, this component requires SELV/PELV fixed power supplies and a max power supply of 2 x 4 A with an external fuse. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8208382
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8208382.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Connection position
- Lateral
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per module
- Diagnose per internal communication
- Logic supply undervoltage PS | Logic supply overvoltage PS
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 128
- Compatible with
- Valve manifold VTUX-A-S
- Dimensions W x L x H
- 26 mm x 104 mm x 92 mm
- Inductive protective circuit
- Installed
- Intrinsic current consumption at nominal operating voltage for
- Typically 50 mA
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Power consumption at 24 VDC
- 1.2 W
- Max. power supply
- 2 x 4 A (external fuse required)
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Electrical isolation of outputs between channel - internal communication
- Yes
- Potential separation between the supply voltages electronics/sensor
- Yes
- Protocol
- CC-Link IE Field Basic | EtherCAT | EtherNet/IP | Modbus® TCP | PROFINET
