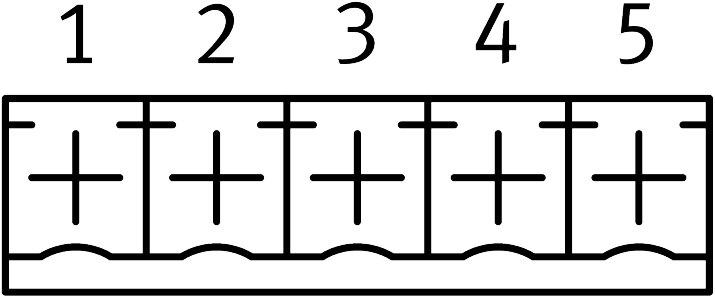

Reference imageConfirm configuration by manufacturer part number.
Festo
8208384
Manifold sub-base VABX-A-S-EL-E12-CTED-MPRJ45-SHUH-XL
The Festo industrial component, part number 8208384, is compatible with the valve manifold VTUX-A-S and features an interchangeable valve manifold design supporting a maximum of 128 solenoid coils. Measuring 26 mm x 104 mm x 92 mm with a lateral connection position, this unit operates at a nominal DC voltage of 24 V for electronics, sensors, and load, consuming 1.2 W with a typical intrinsic current consumption of 50 mA. It includes built-in reverse polarity protection, an installed inductive protective circuit, module-level LED diagnostics, internal communication diagnostics for logic supply undervoltage and overvoltage PS, and electrical isolation of outputs between the channel and internal communication. The component adheres to FN 942017-4, FN 942017-5, EN 60068-2-6, and EN 60068-2-27 standards for vibration and shock resistance in size 1 | 2 configurations. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8208384
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8208384.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Connection position
- Lateral
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per module
- Diagnose per internal communication
- Logic supply undervoltage PS | Logic supply overvoltage PS
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 128
- Compatible with
- Valve manifold VTUX-A-S
- Dimensions W x L x H
- 26 mm x 104 mm x 92 mm
- Inductive protective circuit
- Installed
- Intrinsic current consumption at nominal operating voltage for
- Typically 50 mA
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Power consumption at 24 VDC
- 1.2 W
- Max. power supply
- 2 x 4 A (external fuse required)
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Electrical isolation of outputs between channel - internal communication
- Yes
- Potential separation between the supply voltages electronics/sensor
- Yes
- Protocol
- CC-Link IE Field Basic | EtherCAT | EtherNet/IP | Modbus® TCP | PROFINET
- Contamination level
- 2
- Permissible voltage uctuations for electronics/sensors
- ±25%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8208384. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
