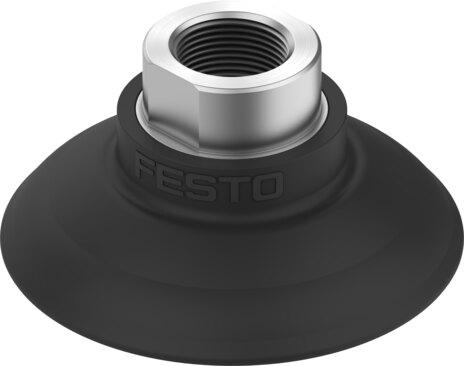

Reference imageConfirm configuration by manufacturer part number.
Festo
8210274
Suction cup with connection OGVM-60-G-N-G38F
The Festo 8210274 is a round bell-shaped industrial component featuring a 60 mm suction cup diameter, a 6 mm nominal width, and 10.6 mm of height compensation for handling workpieces with a minimum radius of 27.5 mm. Operating within a pressure range of -95 kPa to 0 kPa with a nominal operating pressure of -60 kPa, this 24 g black unit delivers a holding force of 143 N and a lateral force of 216 N. It offers moderate corrosion stress resistance, VDMA24364-A1/A2-L LABS conformity, an ambient temperature range of -20 °C to 80 °C, and mounts via an internal thread G3/8 vacuum connection in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8210274
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8210274.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 10.6 mm
- Min. workpiece radius
- 27.5 mm
- Nominal width
- 6 mm
- Suction cup diameter
- 60 mm
- Suction cup volume
- 22 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round bell-shaped
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 143 N
- Lateral force at nominal operating pressure
- 216 N
- Product weight
- 24 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G3/8
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8210274. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
