Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

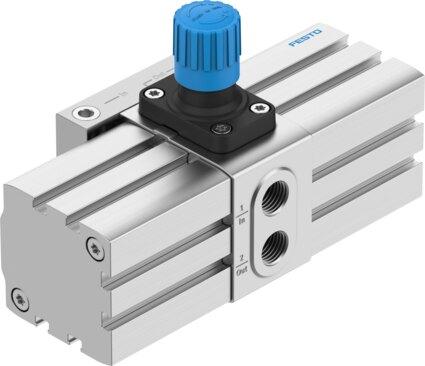

Reference imageConfirm configuration by manufacturer part number.
Festo
8210527
Pressure amplifier PBPA-40-10-A
Engineered with a 40 mm piston diameter and a double-piston pressure booster structural design, the Festo part number 8210527 operates with compressed air as per ISO 8573-1:2010 [7:3:4] and does not permit oil lubrication. This component features an operating pressure of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) and delivers an output pressure 2 ranging from 0.4 MPa to 1 MPa (4 bar to 10 bar, 58 psi to 145 psi), utilizing a G1/4 pneumatic connection 1 alongside a G1/8 pressure gauge setup. With a product weight of 1000 g, a corrosion resistance class of CRC 1, and M4 internal thread mounting, it accommodates any mounting position within an ambient and storage temperature range of 5 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8210527
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8210527.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 40 mm
- Mounting position
- Any
- Structural design
- Double-piston pressure booster
- Pressure gauge
- Set up for G1/8
- Output pressure 2
- 0.4 MPa...1 MPa | 58 psi...145 psi
- Outlet pressure 2
- 4 bar...10 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Inlet pressure 1
- 2 bar...8 bar
- Inlet pressure 1 MPa
- 0.2 MPa...0.8 MPa
- Inlet pressure 1 psi
- 29 psi...116 psi
- Information on pressure regulation range
- If the controller spring is tensioned to the maximum, the maximum | output pressure may be exceeded by 40%.
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 1000 g
- Type of mounting
- With internal thread M4
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8210527. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
