Festo
8210531
Pressure amplifier PBPA-63-16-A

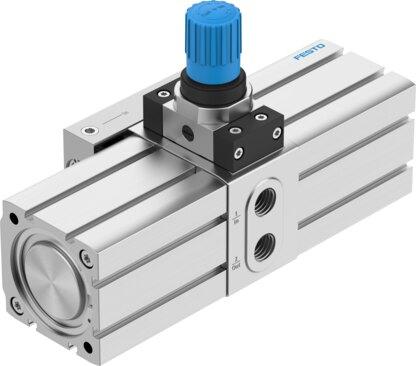

The Festo 8210531 is a double-piston pressure booster featuring a 63 mm piston diameter, G3/8 pneumatic connections for port 1 and port 2, and a G1/8 setup for a pressure gauge. Operating with compressed air as per ISO 8573-1:2010 [7:3:4] at an inlet pressure of 2 bar to 10 bar (0.2 MPa to 1 MPa, 29 psi to 145 psi), it delivers an output pressure 2 ranging from 4 bar to 16 bar (0.4 MPa to 1.6 MPa, 58 psi to 232 psi). This component has a product weight of 3150 g, features internal thread mounting for any mounting position, and maintains a corrosion resistance class of CRC 1 with VDMA24364-B1/B2-L LABS conformity within a storage and ambient temperature range of 5 °C to 60 °C, though operation with oil lubrication is not possible. Submit your exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8210531
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8210531.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 63 mm
- Mounting position
- Any
- Structural design
- Double-piston pressure booster
- Pressure gauge
- Set up for G1/8
- Output pressure 2
- 0.4 MPa...1.6 MPa | 58 psi...232 psi
- Outlet pressure 2
- 4 bar...16 bar
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar | 29 psi...145 psi
- Inlet pressure 1
- 2 bar...10 bar
- Inlet pressure 1 MPa
- 0.2 MPa...1 MPa
- Inlet pressure 1 psi
- 29 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 3150 g
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Pneumatic connection 3
- G1/4
- Note on materials
- RoHS compliant
