Festo
8210532

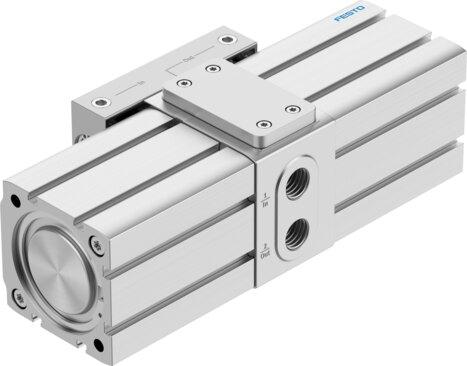

Pressure amplifier PBPA-63-D-A
Festo Pressure amplifier PBPA-63-D-A, part number 8210532, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8210532
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8210532.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Piston diameter
- 63 mm
- Mounting position
- Any
- Structural design
- Double-piston pressure booster
- Pressure gauge
- Set up for G1/8
- Output pressure 2
- 0.4 MPa...2 MPa | 58 psi...290 psi
- Outlet pressure 2
- 4 bar...20 bar
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar | 29 psi...145 psi
- Inlet pressure 1
- 2 bar...10 bar
- Inlet pressure 1 MPa
- 0.2 MPa...1 MPa
- Inlet pressure 1 psi
- 29 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 3050 g
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Pneumatic connection 3
- G1/4
- Note on materials
- RoHS compliant
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8210532. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
