Festo
8210808

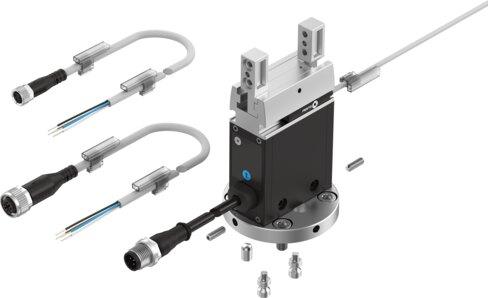

Parallel gripper kit for robots EHPS-16-A-RA50
The Festo part number 8210808 is an electrical industrial component featuring a T-shape structural design with a worm gear unit, gear rack and pinion, and a plain-bearing guide. This 2-jaw parallel electric gripper utilizes a DC servo motor with a 10 mm stroke per gripper jaw, a 1.1 Hz max cycle rate, and a 1 A max current consumption. It provides a pneumatic gripper repetition accuracy of 0.03 mm, 0.2 mm max interchangeability, 0.4 deg max gripper jaw angular play, and 0.05 mm max gripper jaw backlash, conforming to IEC 61010-1 standards while supporting any mounting position and position sensing via proximity switch. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8210808
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8210808.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke per gripper jaw
- 10 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.4 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Gripper function
- Parallel
- Structural design
- Worm gear unit | T-shape | Gear rack/pinion | Electric gripper
- Conforms to standard
- IEC 61010-1
- Guide
- Plain-bearing guide
- Position sensing
- Via proximity switch
- Motor type
- DC servo motor
- Control elements
- Latching switch
- Ready status indication
- LED
- Max. cycle rate
- 1.1 Hz
- Max. current consumption
- 1 A
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 10%
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Noise level
- 70 dB(A)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8210808. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
