Festo
8210809

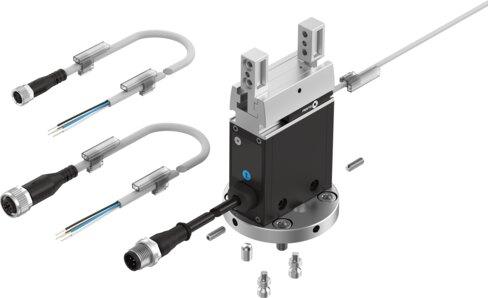

Parallel gripper kit for robots EHPS-20-A-RA50
The Festo part number 8210809 is an electrical industrial component featuring a parallel 2-jaw gripper function driven by a DC servo motor and a worm gear unit, T-shape, and gear rack/pinion structural design with a plain-bearing guide. It operates with a size 20, a stroke of 13 mm per gripper jaw, a maximum cycle rate of 0.7 Hz, and a maximum current consumption of 2 A, achieving a pneumatic gripper repetition accuracy of 0.01 mm, a maximum interchangeability and rotational symmetry of 0.2 mm, a maximum gripper jaw angular play ax, ay of 0.3 deg, and a maximum gripper jaw backlash Sz of 0.05 mm. Position sensing is accomplished via proximity switch with a latching switch control element, an LED ready status indication, and a mounting position in any orientation conforming to standard IEC 61010-1. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8210809
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8210809.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Stroke per gripper jaw
- 13 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.3 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.01 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Gripper function
- Parallel
- Structural design
- Worm gear unit | T-shape | Gear rack/pinion | Electric gripper
- Conforms to standard
- IEC 61010-1
- Guide
- Plain-bearing guide
- Position sensing
- Via proximity switch
- Motor type
- DC servo motor
- Control elements
- Latching switch
- Ready status indication
- LED
- Max. cycle rate
- 0.7 Hz
- Max. current consumption
- 2 A
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 10%
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Noise level
- 70 dB(A)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8210809. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
